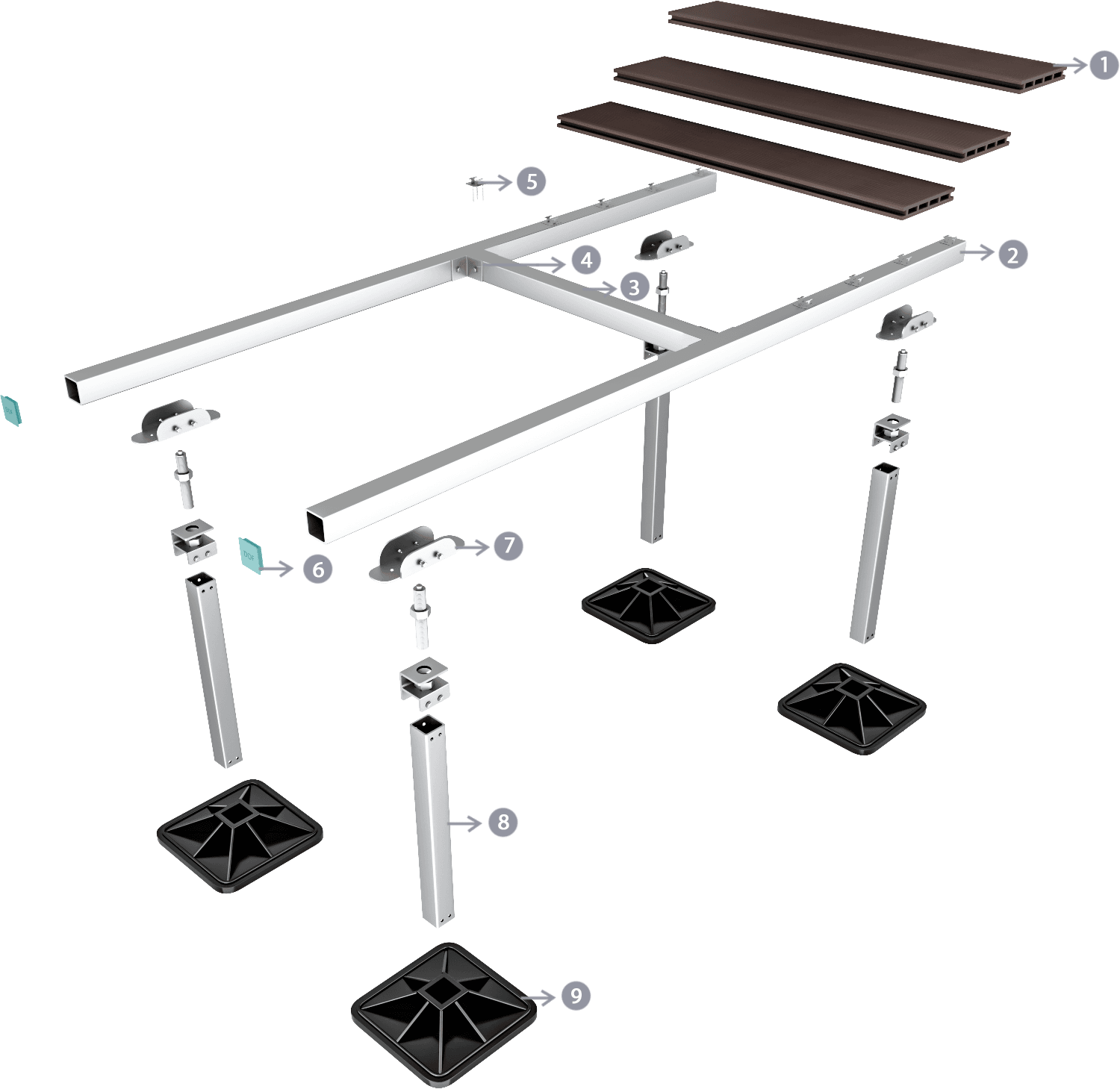

Exterior Fire Rated Deck System
- 1
Deck
- 2
Galvanized Steel Beam 40x40x3
- 3
Galvanized Steel Beam 40x40x3
- 4
Galvanized Steel Corner Profile,
Thickness 3mm - 5
Galvanized Steel Deck Clip
- 6
End Cap
- 7
Galvanized Steel Top Base
thickness 3mm - 8
Galvanized Steel Pedestal 40x40x3mm
- 9
Exterior Plastic Lower Base
Exterior Standard Seismic Systems
DOF.ESS-01
Pedestal spacing is flexible depending on the project.
Galvanized Steel Top Cap 1
with Steel Beam
DOF.TC-01
Galvanized Steel Pedestal
40x40x3mm and 40x80x3mm
Exterior Angle Adjustable Lower Base
DOF.ELB-01
DOF.ESS-02
600x600mm
Galvanized Steel Top Cap 2
with Steel Beam
DOF.TC-02
Galvanized Steel Pedestal
25x2mm
Exterior Rounded Lower Base
DOF.ELB-02
Exterior Smart Seismic Systems
DOF.ESSM-01
Pedestal spacing is flexible depending on the project.
Galvanized Steel Top Cap 1
with Smart Beam
DOF.TC-03
Galvanized Steel Smart System Pedestal
40x40x3mm
Exterior Plastic Lower Base
DOF.ELB-03
DOF.ESSM-02
1200x1200mm
Galvanized Steel Top Cap 2
with Steel Beam
DOF.TC-04
Galvanized Steel Smart System Pedestal
80x80x3mm
Exterior Height Adjustable Lower Base
DOF.ELB-04
