Smart Seismic Pedestal with
Angle Adjustable Base
DOF.SSM-01
- 1
Gasket and Copper Plate
- 2
Panel Holder
- 3
Galvanized Steel Beam
40x40x3mm - 4
Galvanized Steel Corner Profile,
Thickness 3mm - 5
End Cap
- 6
Galvanized Steel Top Base,
Thickness 3mm - 7
Galvanized Steel M18x160 Rod
- 8
Galvanized Steel M18 Nut
- 9
Galvanized Steel Adjustment Profile
- 10
Galvanized Steel Smart Seismic Pedestal 40x40x3mm
- 11
Galvanized Steel Beam
40x40x3mm - 12
Galvanized Steel Spring Nut
- 13
Galvanized Steel Pipe Clamps Angel Adjustable Lower Base
- 14
Galvanized Steel Screw

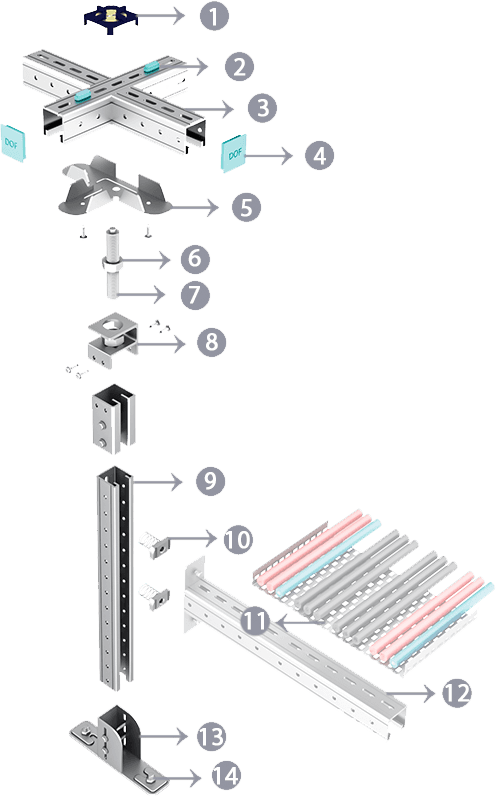

Smart Seismic Pedestal with
Height Adjustable Base
DOF.SSM-02
- 1
Gasket and Copper Plate
- 2
Panel Holder
- 3
Galvanized Steel Beam
40x40x3mm - 4
End Cap
- 5
Galvanized Steel Top Base,
Thickness 3mm - 6
Galvanized Steel M18x160 Rod
- 7
Galvanized Steel M18 Nut
- 8
Galvanized Steel Adjustment Profile
- 9
Galvanized Steel Smart Seismic Pedestal 40x40x3mm
- 10
Galvanized Steel Cable Tray
- 11
Galvanized Steel Spring Nut
- 12
Galvanized Steel Beam
40x40x-3mm - 13
Galvanized Steel Height Adjustable Lower Base
- 14
Galvanized Steel Screw
DOF.SSM-01
Pedestal spacing is flexible depending on the project.
Galvanized Steel Top Cap 1
with Smart Beam
DOF.TC-03
Galvanized Steel Smart System Pedestal
40x80x3mm
Angle Adjustable Lower Base
DOF.LB-03
DOF.SSM-02
600x600mm
Galvanized Steel Top Cap 2
with Smart Beam
DOF.TC-04
Galvanized Steel Smart System Pedestal
40x40x3mm
Height Adjustable Lower Base
DOF.LB-04
